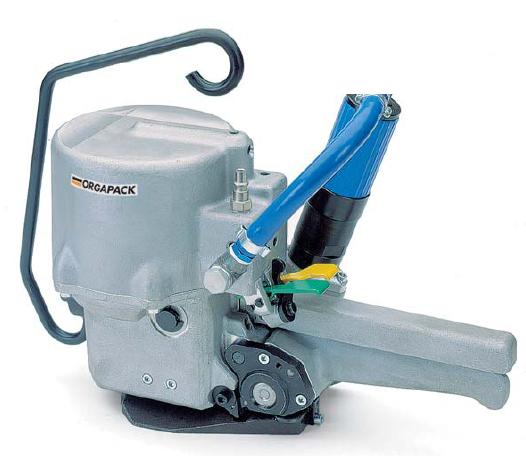

Datasheet OR-H 20A and OR-H 21A
Pneumatic tensioning and sealing
for flat packages
Characteristics:
Weight:++++++++++++++++++++++++++++9.7 kg (20 lbs) ++++++++++++++++++++++.11.5 kg (24 lbs)
Tension force, up to approx. N ++++++++++.4000 ++++++++++++++++++++,+++++++++6500
Compressed air consumption (6 bar):
– Tensioning, Nl/s ++++++++++++++++++++6 +++++++++++++++++++++++++,. ++.+++6.4+++++++++++++++
– Sealing, Nl ++++++++++++++++++++++++6 +++++++++++++++++++++,++++++++++.12
Steel strap:
Advantages :
| .High performance strapping tools
for stationary use |
| .Control buttons positioned
conveniently above the handle |
| .Light and easy to handle. (For the OR-H-20A) |
| .Option:
With universal suspension bow (For the OR-H-20A) |
| .Compact and light for its
performance class (For the OR-H-21A) |
| .Fitted as standard with swivelling
suspension bow (For the OR-H-21A) |
Kemex Strapping Systems 1850, Transcanadienne, ++++.Dorval (Québec) + + Tél: 514-685-1119 +.++,.800-755-3639 +Fax: 514-685-2228
-Width, mm (inch) ++++++++++++++,++++,.13, 16 (1/2, 5/8) +++++++++++++.++++++++16, 19 (5/8, 3/4)
OR-H 20A
OR-H 21A
Standard quality:
– Strap thickness, mm (inch) ++++++++++++.0.40–0.63 (.015–.025) +++++++++++++++++0.40–0.80 (.015–.031)
– Tensile strength,
+.up to approx. N/mm2 (lbs/sq. inch) +++,+++850 (120 000) +++++++++++++++++,+++++.850 (120 000)
High tensile quality:
– Strap thickness, mm (inch) +++++++,+++++0.40–0.50 (.015–.019) +++++++++++,+++++.0.40–0.63 (.015–.025)
– Tensile strength,
+.up to approx. N/mm2 (lbs/sq. inch) +++++.+1100 (157 000) ++++++++++++++++++++++1100 (157 000)
